Anti Collision 2.5mm Highway Guardrail Roll Forming Machine 12m/Min

Name: Anti Collision 25mm Highway Guardrail Roll Forming Machine 12mMin
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-highway 2

Certification : CE、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80set/Year

Delivery Time : 40 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Warranty : 2 Years

Weight : 8 Ton

Voltage : 380V.50HZ.3Phase

Tickness of coil : 2.5mm-3.5mm

Use : Highway guardrail steel sheet

Type : Highway guardrail crash barrier roll forming machine

Structure : 350H beam

roduction Capacity : 8-12m/min

Material of Roller : Gcr15, Quench HRC58-62 Plated Chrome

Way Of Drive : Gearbox driven

Contact Now

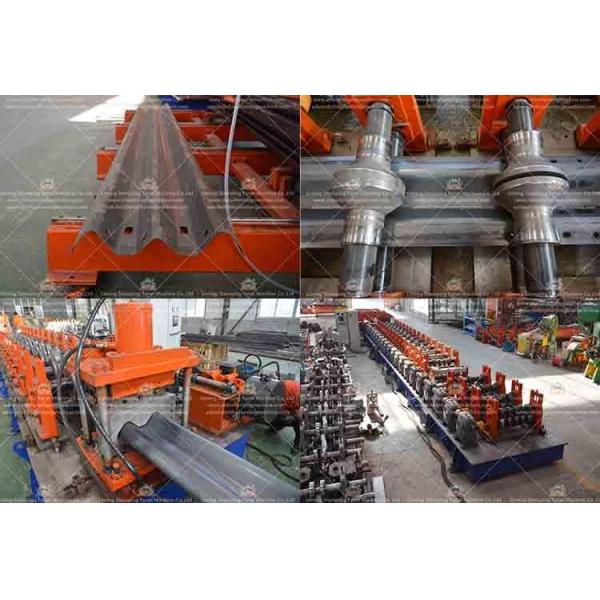

High-precision anti-collision guardrail highway guardrail roll forming machine

The highway guardrail roll forming machine is an equipment used to produce highway guardrails.

The expressway guardrail roll forming machine is composed of an uncoiling device, a feeding device, a forming host, a shearing device, and an automatic material receiving device. The whole machine adopts a PLC control system and AV frequency converter for speed regulation, and can run fully automatically.

At the same time, we will also provide you with one-to-one video education guidance to ensure that you can understand and operate the highway guardrail roll forming machine proficiently.

The highway guardrail roll forming machine is also equipped with G12 molding wheels to ensure the hardness and toughness of the pressing wheels, thus helping you save time for maintenance and replacement of the molding wheels.

Liming Company can also design according to the product drawings you provide, and produce your own high-precision guardrail machine.

technical parameter of The highway guardrail roll forming machine

Item:		Specification:	Notes:
1.Information of raw material	Suitable material:	Galvanized coil
	Width:	748 mm
	Thickness:	2.5-3.5mm
	Yield strength:	Q235A HR
2.Production specification	Detailed as the file
3.Power requirement:	Main power:	22kw two sets	With inventor (normal standard)
	Cutter power:	15.5kw(pressure:25mpa) 3 pcs cutter	With inventor (normal standard)
	Speed of machine:	10-15meters/min
5.Hydraulic de-coiler:	Loading:	5tons	Main power:3kw
	Inner diameter	508mm
	Type:	Automatic type
6.Machine specification:	Structure:	400I beam	Transform method : Gearbox with shaft
	Roll stations:	20 roll stations (with 6pcs rollers for leveling diameter:80mm)
	Splint thickness:	22mm
	Diameter of shaft:	110mm,
	Material of shaft:	Forged 45# steel
	Type of cutting:	Saw cutting
	Material of roller:	CR12 with heat treatment: HRC58-62
	Sizes of machine:	15.51.01.5meters
	Material of punching mold:	Cr12,hydraulic pre-punching
	Sizes of chain:	2.0inch
