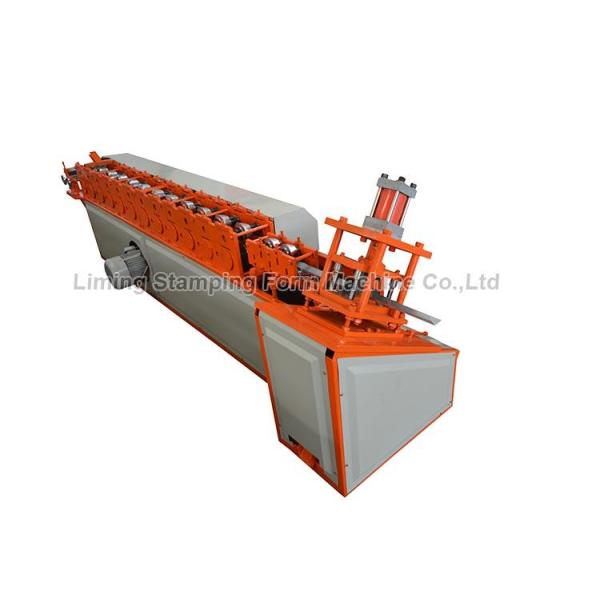

8kw Plc Shelf Column Metal Roll Forming Machine For Building Materials Supermarket

Name: 8kw Plc Shelf Column Metal Roll Forming Machine For Building Materials Supermarket
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-rack 1

Certification : SGS、BV、ISO、CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50set/Year

Delivery Time : 40 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

roller shaft material : GCr15

Roller material : 45# steel

Condition : New

Core Components : Motor, Pump, PLC

Warranty : 12month

Voltage : 380v

Video outgoing-inspection : Provided

Contact Now

Shelf Column Forming Machine for Building Materials Supermarket

In order to make it easier for consumers to choose the items that need to be purchased in building materials supermarkets, supermarket owners often use shelves to classify products, so as to make it easier for consumers to find the items they need. We can provide shelf column forming machines to help you .

The shelf column forming machine adopts an integrated wire cutting middle plate, which is fixed to the base of the machine by welding, thereby ensuring the stability of the machine. At the same time, the shelf column forming machine is also equipped with an inclined shearing device to make the finished cutting The product section is clean and free of burrs, and at the same time, it is convenient to receive the product.

The shelf column forming machine is also equipped with a protective device at the transmission part to prevent equipment and personnel damage during operation and help you to produce safely and quickly.

Main Parameters Of The shelf column forming machine

No	Roll Forming System Main Parameter
1	Length of the main part	about 500010001200Mm
2	Weight of main part	3-8 tons
3	Working Speed	15-35m/min
4	Voltage	380V/50HZ3Phase (as customer’s request)
4	Roller fixer	guide column
5	Frame	steel plate welded/ Memorial arch frame type
6	Frame thickness	20mm
7	Drive mode	gear
8	Material of rollers	GCr15MoV
9	Material of shafts	45# steel with tempering
10	Diameter of shafts	φ40mm
11	Number of rollers	10-16 rollers
12	Main power	3-8kw
13	Servo Motor Power	1.2KW

8kw Plc Shelf Column Metal Roll Forming Machine For Building Materials Supermarket
