PPGI Building Materials Rack Roll Forming Machine Fully Automatic

Brand Name : LIMING

Model Number : LM-rack 3

Certification : SGS、BV、ISO、CE

Place of Origin : Botou Hebei China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50set/Year

Delivery Time : 40work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

roller shaft material : GCr15

Material : GI,GL,PPGI,PPGL

Dimension(L*W*H) : 5000mm*1000mm*1300mm

Core Components : Motor, Pump, PLC

Warranty : 12month

Rolling thinckness : 0.3-1mm

Voltage : 380v

Weight : 6T

Contact Now

The building materials market is easy to install fully automatic shelf column forming machine

Shelf column forming machine is a machine used to produce shelf columns

The shelf column forming machine includes hydraulic uncoiling, leveling, feeding, punching, forming, cutting, and discharging. The control adopts Siemens PLC, touch screen input, high degree of automation, convenient operation, high production efficiency, and the production speed of the whole line can reach 40m/min.

The shelf column forming machine adopts automatic industrial control technology, and compared with traditional distributed multi-person processing, the production efficiency has been greatly improved.

At the same time, the shelf column forming machine realizes continuous production from raw materials to forming off-line. The whole line only needs 1 person to operate and inspect, which helps you reduce the number of operators and labor intensity, eliminates the need for manual handling and positioning procedures, and reduces Your labor costs

Main Parameters Of The building materials market is easy to install fully automatic shelf column forming machine

Coil Material Type Galvanized Steel Sheet
Thick 0.3-1.0mm
Uncoiler (manual/automatic) Weight Capacity 6T
Inner Diameter 460-520mm
Outside Diameter 1400mm
Coil width Max 600mm
Feeding and Pinch rollers one pair, up and down
straightening device Straightening rollers up three, down four
Diameter of rollers 75mm
Roll Former Frame type single station
Forming Roller stand about 14 Groups
Shaft material High grade 45# steel,
Heated and quenched HRC55-60°
Shaft diameter 50mm
Roller material GCr15
Drive Type By gear
Forming Speed 40-45m/Min
Motor 5.5KW reducer with
requency control
Cutting Type After-cutting, hydraulic
Hydraulic cutter Material of mould Cr15
With quenching treatment55-60°
Cutting tolerance 10M+/- 2.0 mm
Feature no distort, no wasting , high safe
factor.(main motor stop cutting)
PLC cabinet PLC XINJIE
Length Controller Encoder
Operation Touch Screen
Transducer Delta
Hydraulic station Hydraulic station power 4 KW*2
Hydraulic pressure 15 Mpa
Runout Table Non-power type 2 pcs


PPGI Building Materials Rack Roll Forming Machine Fully Automatic


Product Tags:

building materials rack roll forming machine



rack roll forming machine fully automatic



PPGI rack roll forming machine

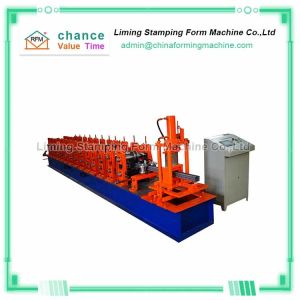

Wholesale PPGI Building Materials Rack Roll Forming Machine Fully Automatic from china suppliers
